RIGID PCB

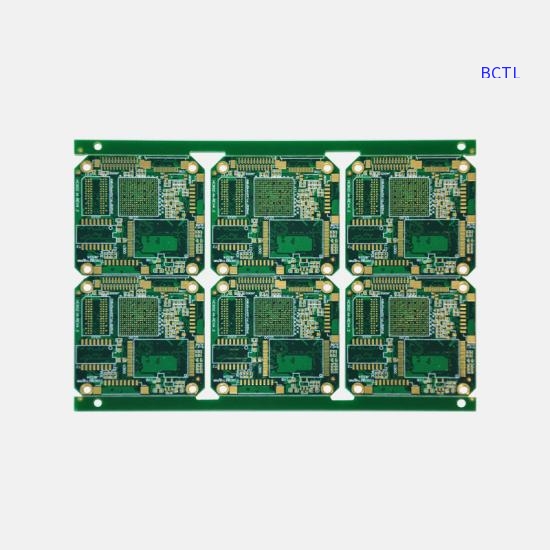

12 Layers BGA PCB Board For Medical Electronics

UL&IPC Standard &ISO

Layer: 12L
Material: Fr-4
PCB Thickness: 1.6mm
Cu Thickness: 2.0 OZ
Min Line W/S: 0.075/0.075mm
Surface Finish: Immersion gold
Certificate: UL/ISO/TS16949
Application: Medical Electronics

List price： 0.00

Price： 0.00

UL&IPC Standard &ISO

Layer: 12L
Material: Fr-4
PCB Thickness: 1.6mm
Cu Thickness: 2.0 OZ
Min Line W/S: 0.075/0.075mm
Surface Finish: Immersion gold
Certificate: UL/ISO/TS16949
Application: Medical Electronics

Item	Speci.
Layers	1~32
Board thickness	0.1mm-7.0mm
Material	FR-4，CEM-1/CEM-3，PI，High Tg，Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP，HASL，Imm Gold/Nickel/Ag， Electric gold
Copper thickness	0.5-7.0OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.75mm
Hole tolerance	PTH：±0.05 NPTH：±0.025
Certificate	UL，ISO 9001，ISO14001，IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppilers	Shengyi, KB, Nanya, ITEQ,etc.

Quality And Policy

Continually improve our quality, efficiency, service to satisfy thecustomer's requirement.
Quality Specifications:

Quality System

1. ISO-9001:2018 Quality System Standard
2. Quality Standard: IPC-610-D class 2,
3. Soldering Standard: J-STD-001 class 1,2,3
4. ESD Standard: ESD-MIL-STD-1686
5. Workshop management:5S
6. FAI-first article inspection
7. In process visual inspection
8. AOI inspection
9. Machine calibration and preventative maintenance

RoHs Management

Product compliant: RoHS
RoHS prohibited substances list :
NO. Name The upper limit(ppm=mg/kg)
1 Pb 0.1%(1000ppm)
2 Hg 0.1%(1000ppm)
3 Cd 0.001%(100ppm)
4 Cr VI+ 0.1%(1000ppm)
5 PBB 0.1%(1000ppm)
6 PBDE 0.1%(1000ppm)

Deliver Time For PCB & PCBA

1. PCB production time: sample: 3-4 days / production: within 7 days

2. Fast pcb delivery: 24 hours for 2L ; 48 hours for 4L ; 72 hours for 6L.

3. Component purchase: 2 days if all components is available in our domestic market.

4. PCB Assembly: samples: within 8 days / mass production: within 12 days

LAYER	PROTOTYPE		MASS PRODUCTION (above 20 m2)
	PROTOTYPE
	Quick Turn	Standard Time
MC PCB	48 hours	4-5 days	10-12 days
PFC 1 L	48 hours	5-6 days	12-13 days
1L	24 hours	3-4 days	8-10 days
2L	24 hours	3-4 days	8-10 days
4L	48 hours	5-6 days	8-10 days
6L	72 hours	6-7 days	10-12 days
8L	72 hours	7-8 days	12-14 days
10L	96 hours	9-10days	16-18 days

One-stop Service Include

PCB Prototype	Quick Turn PCB	Single-Sided PCB
Double-Sided PCB	Multilayer PCB	Rigid PCB
Flexible PCB	Rigid-Flex PCB	LED PCB
Aluminum PCB	Metal Core PCB	Thick Copper PCB
HDI PCB	BGA PCB	High TG PCB
PCB Stencil	Impedance Control PCB	PCB Assembly
High-Frequency PCB	Bluetooth Circuit Board	Automotive PCB
USB Circuit Board	Halogen-Free PCB	Antenna PCB

Prev: 6 Layers B......

Next: 4 Layers I......
