R-F PC

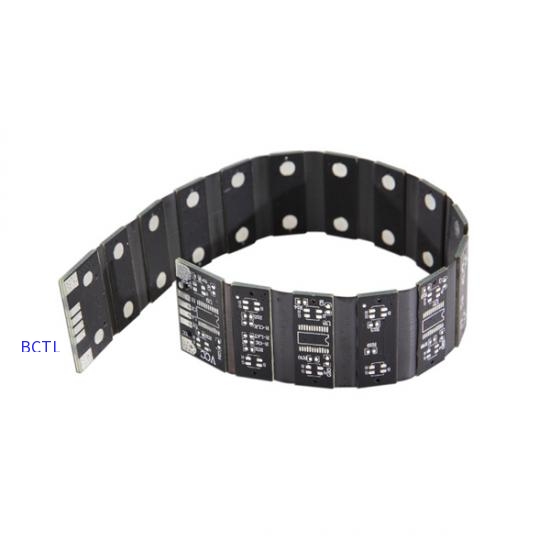

HDD R-F PCB/ Rigid-Flex PCB

UL&IPC Standard &ISO

Layer: 4L
Material: Fr-4
PCB Thickness: 1.2mm
Cu Thickness: 1.0 OZ
Min Line W/S: 0.3/0.3mm
Surface Finish: Immersion gold
Certificate: UL/ISO/TS16949
Application: Consumer Electronics

List price： 0.00

Price： 0.00

UL&IPC Standard &ISO

Layer: 4L
Material: Fr-4
PCB Thickness: 1.2mm
Cu Thickness: 1.0 OZ
Min Line W/S: 0.3/0.3mm
Surface Finish: Immersion gold
Certificate: UL/ISO/TS16949
Application: Consumer Electronics

Item	Speci.
Layers	1~32
Board thickness	0.1mm-7.0mm
Material	FR-4，CEM-1/CEM-3，PI，High Tg，Rogers
Max panel size	32"×48"(800mm×1200mm)
Min hole size	0.075mm
Min line width	3mil(0.075mm)
Surface finish	OSP，HASL，Imm Gold/Nickel/Ag， Electric gold
Copper thickness	0.5-7.0OZ
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Min PAD	5mil(0.13mm)
Inter package	Vacuum
Outer package	Carton
Outline tolerance	±0.75mm
Hole tolerance	PTH：±0.05 NPTH：±0.025
Certificate	UL，ISO 9001，ISO14001，IATF16949
Special request	Blind hole+Gold finger + BGA
Material Suppilers	Shengyi, KB, Nanya, ITEQ,etc.

Flexible-Rigid PCB board

The flexible circuit board and the rigid circuit board are combined together according to the relevant process requirements after the process of pressing and forming, to form a circuit board with FPC characteristics and PCB characteristics.FPC is a highly reliable and flexible printed circuit made of polyester film or polyimide as a substrate. By embedding a circuit design on a flexible thin plastic sheet, it can be narrow And a large number of precision components are stacked in a limited space to form a flexible circuit that can be bent.
